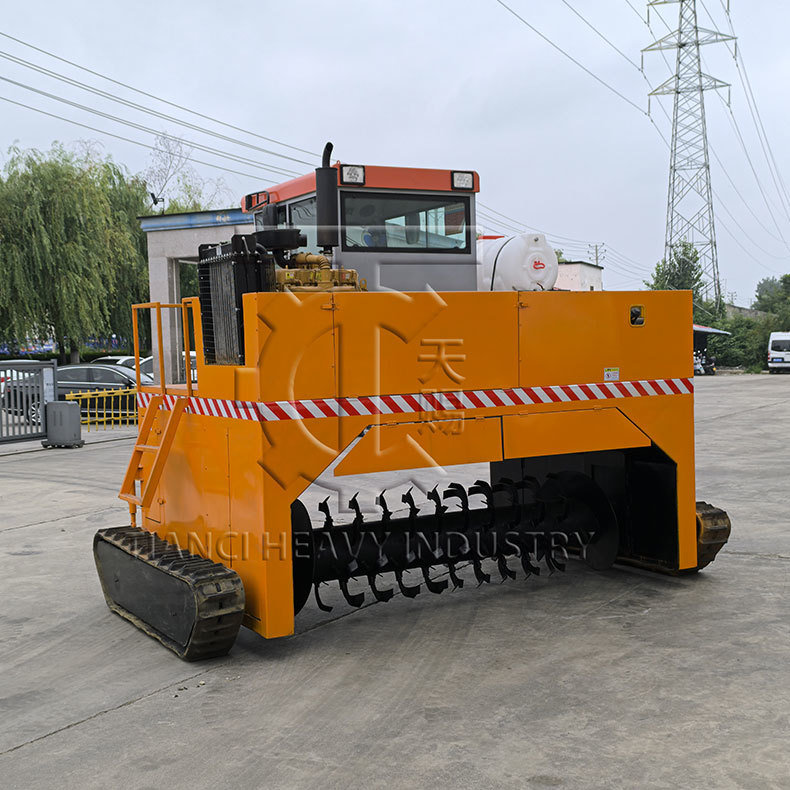

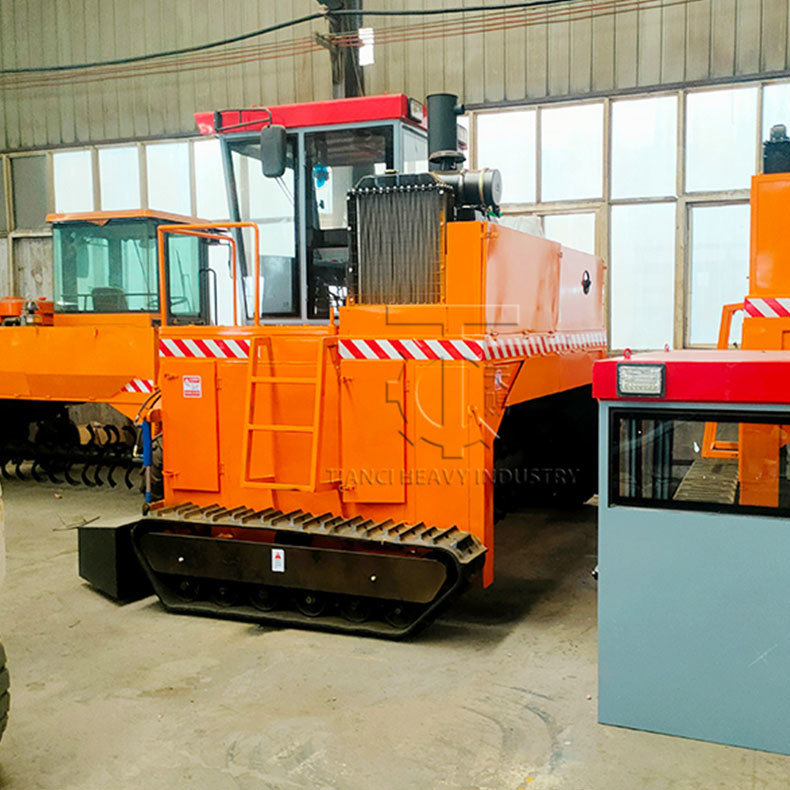

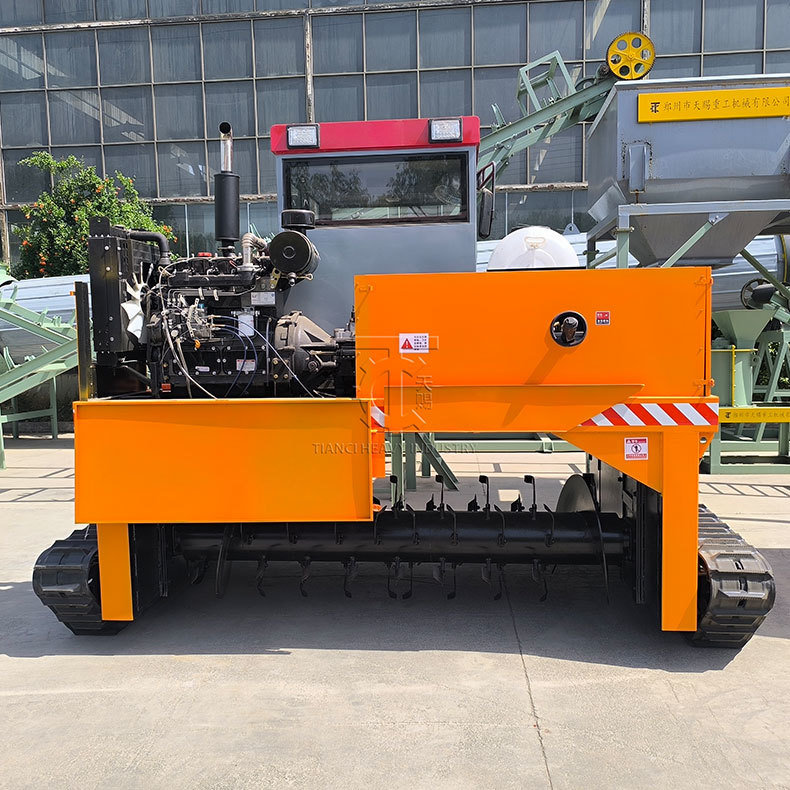

Crawler type organic manure fermentation equipment compost turner

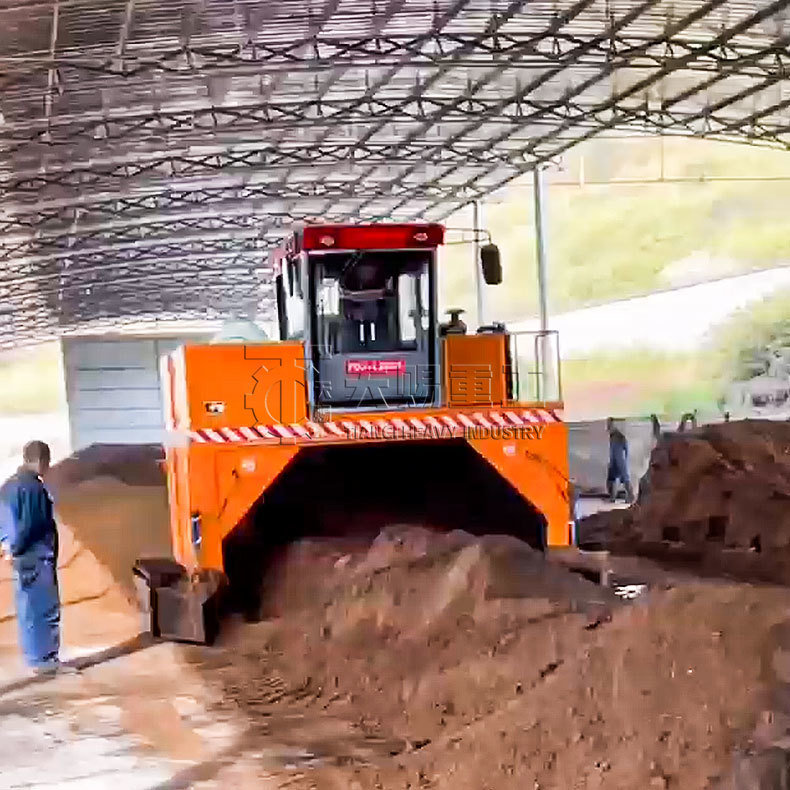

The crawler-type turner adopts a ground-pile fermentation process, which is currently the most cost-effective method for saving soil and human resources. The operational process begins with piling up the materials; subsequently, the turner conducts regular stirring and crushing operations. Under aerobic conditions facilitated by this process, the organic matter in the materials undergoes efficient decomposition.
During the operation of the crawler-type turner, it exhibits excellent mixing performance: materials with high viscosity, such as sludge and chicken manure, can be fully blended with fungi and straw powder. This thorough mixing not only optimizes the material composition but also creates a superior aerobic environment, which is crucial for promoting the fermentation process.
Notably, throughout the entire fermentation cycle, the crawler-type turner plays a key role in environmental protection. It can effectively inhibit the production of harmful and malodorous gases, including hydrogen sulfide, amine gas, and indole. By controlling the emission of such pollutants, the equipment fully meets the standards and requirements of eco-friendly production.
|
型号 Model |
处理能力 Capacity (m³/h) |
工作速度 Working speed (m/min) |
动力/马力 Power/Horsepower (kw / HP) |
工作刀直径 working Knife Diameter (mm) |
翻堆宽度 Turning Width (mm) |
翻堆深度 Turning Depth (m) |
|
FDJ-L2500 |
800-1000 |
5-10 |
ZH4102-65kw 88HP |
≤680 |
≤2500 |
≤1.1 |
|
FDJ-L2600 |
900-1100 |
5-10 |
R4108-88kw /120HP |
≤725 |
≤2600 |
≤1.3 |
|
FDJ-L2800 |
1000-1200 |
5-10 |
R4108-96kw / 130HP |
≤826 |
≤2800 |
≤1.3 |
|
FDJ-L3000 |
1000-1200 |
5-10 |
R6105-115kw / 156HP |
≤826 |
≤3000 |
≤1.3 |
|
FDJ-L3200 |
1200-1500 |
5-10 |
R6105-132kw / 180HP |
≤826 |
≤3200 |
≤1.3 |
|
FDJ-L3500 |
1300-1600 |
5-10 |
R6108-175kw / 238HP |
≤910 |
≤3500 |
≤1.6 |
|
FDJ-L4000 |
1300-1600 |
5-10 |
R6108-194kw / 264HP |
≤910 |
≤40000 |
≤1.8 |
Package and shippment :
Package : 20GP or 40HQ container by sea or train , as well as wooden package;
Shippment : 10-15 working days once advanced payment ;
Zhengzhou Tianci Heavy Industry Machinery Co., Ltd. is an enterprise specializing in agricultural environmental protection technology engineering, equipment development research and production! Its main products are machinery and equipment required for organic, and compound and BB fertilizers with an annual output of 10,000 to 200,000 tons! Especially for the granulation equipment of powder materials, we have more than 20 years of production experience and 10 years export experience.
Sincerely welcome to visit our factory to check our quality!
